Highpower LED High Bay Light

Luxint LED high bay lights are perfect for illuminating large indoor spaces with high ceilings such as warehouses, factories, supermarkets, gyms, barns, and supermarkets.

High Bay LED Lights produce a bright, even light that won’t fade over time. They feature a 50% energy savings over linear fluorescent high bays and 60% compared to metal halides

Free Quote!  Contact Us About Our Pricing Today!

Description

Spread the love

High Bay Commerical Lighting – LUXINT High Bay Lighting

Warehouses, factories, supermarkets, gyms, stables, and other big indoor spaces with high ceilings are ideal applications for Luxint LED high bay lights. The steady, brilliant light that High Bay LED Lights create won’t deteriorate with time. They offer energy savings of 60% compared to metal halides and 50% compared to linear fluorescent high bays.

There are many benefits of High Bay Lights. Compared to other classic luminaries, LED lights use a great deal less energy to be as brilliant. Thanks to their superior brightness per watt rating, LED Lights may occasionally save up to 80% on energy use. Watt is just the unit of energy used to illuminate lamps. Less energy is needed since there are fewer watts required per bulb, which lowers our manufacturing and environmental damage.

Detailed Video of the High Bay Light:

High Bay Light Specification:

  • Color Temperature(CCT): 6000K (Daylight Alert)
  • Lamp Luminous Efficiency(lm/w): 170
  • Color Rendering Index(Ra): 80
  • Support Dimmer: Yes
  • Lighting solutions service: Lighting and circuitry design, Agi32 layout, Project Installation
  • Lifespan (hours): 50000
  • Working Time (hours): 50000
  • Product Weight(kg): 3.7
  • Input Voltage(V): AC 85-265V
  • Lamp Luminous Flux(lm): 19500
  • CRI (Ra>): 80
  • Working Temperature(℃): -25 – 55
  • Working Lifetime(Hour): 100000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP65
  • Place of Origin: Guangdong, China
  • Brand Name: Luxint
  • Model Number: UFO06
  • Application: Warehouse
  • Light Source: LED
  • Warranty(Year): 5-Year
  • Control Mode: Switch Control, Remote Control, Sensor control
  • Dimmable: YES; 0-10V dimming
  • Beam Angle: 60°/ 90°/ 120°
  • Protection Class: Class I
  • Voltage (V): 100-277V AC
  • Driver Certifications: CE (EMC,LVD), SAA,CB, RoHS
  • Fixture Certifications: CE / RoHS / IP65
  • Test Reports: LM79 / LM80

Product Description

LED lights don’t need any harmful substances. Fluorescent lighting, which is currently used in most offices and contains hazardous substances like mercury, When these bulbs reach the end of their useful lives, they are dumped into landfills, where mercury can contaminate the environment. mercury pollution occurs when waste is dumped into landfills.

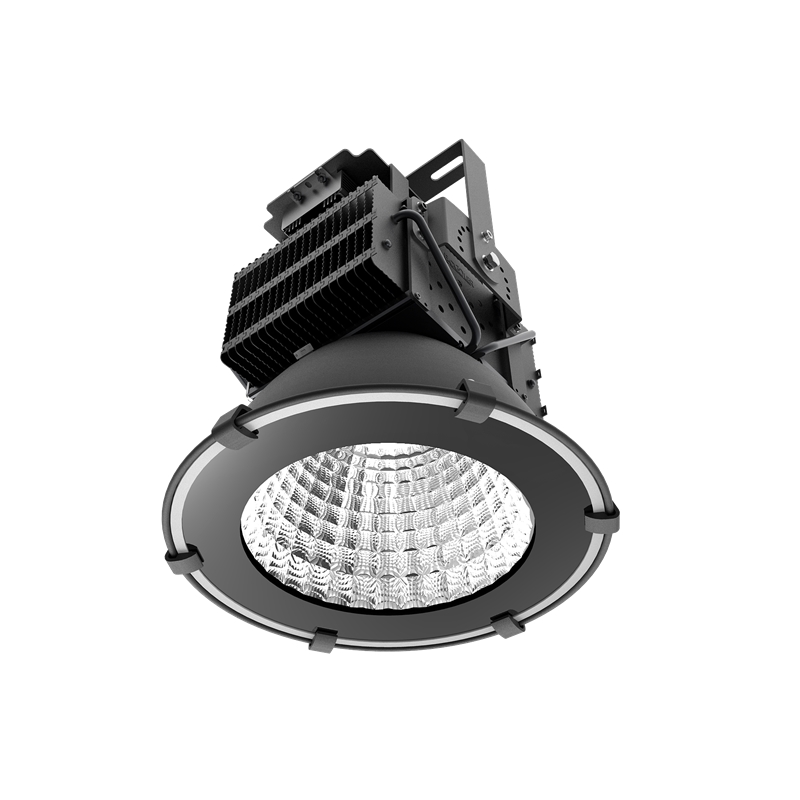

High Bay Light
Part No.
LX-GKH100-500W
Wattage
100w-500W
CCT
3000K, 4000K, 5000K, 5700K, 6500K optional
Beam Angle
25/45/60/90/100°
Luminous efficiency
120lm/W
N.W.
9kg/pcs
G.W.
12kg/pcs
Warranty
5 years
Package size
48*48*57cm/1PC 12KG/CTN

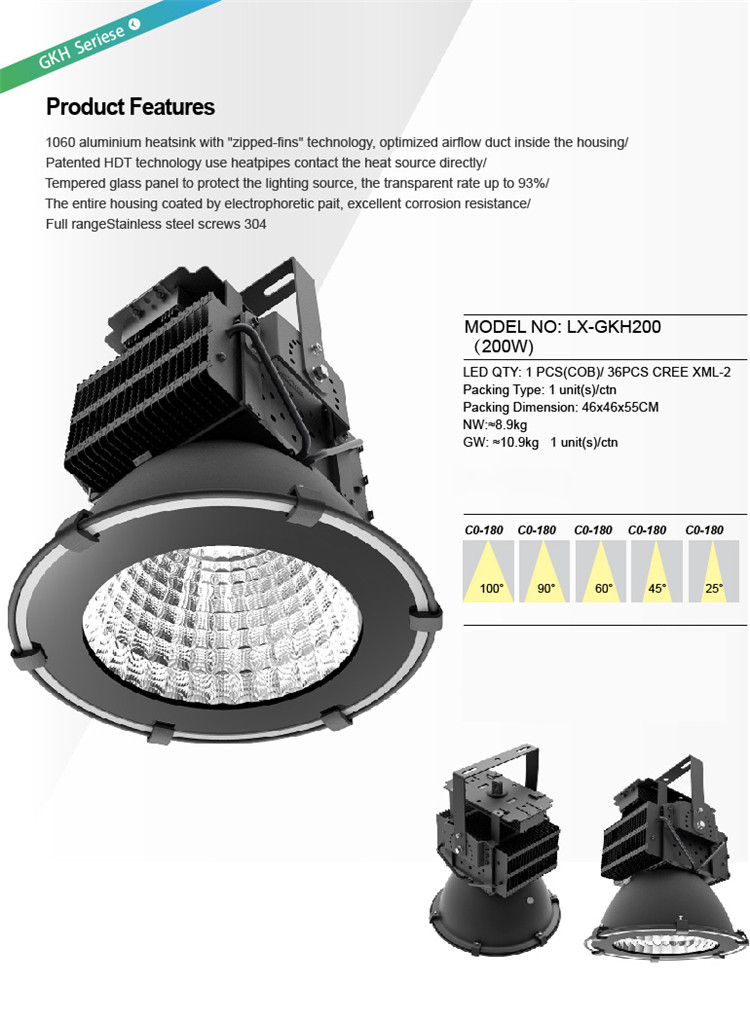

High Bay Light specs
High Bay Light information
High Bay Light Parts

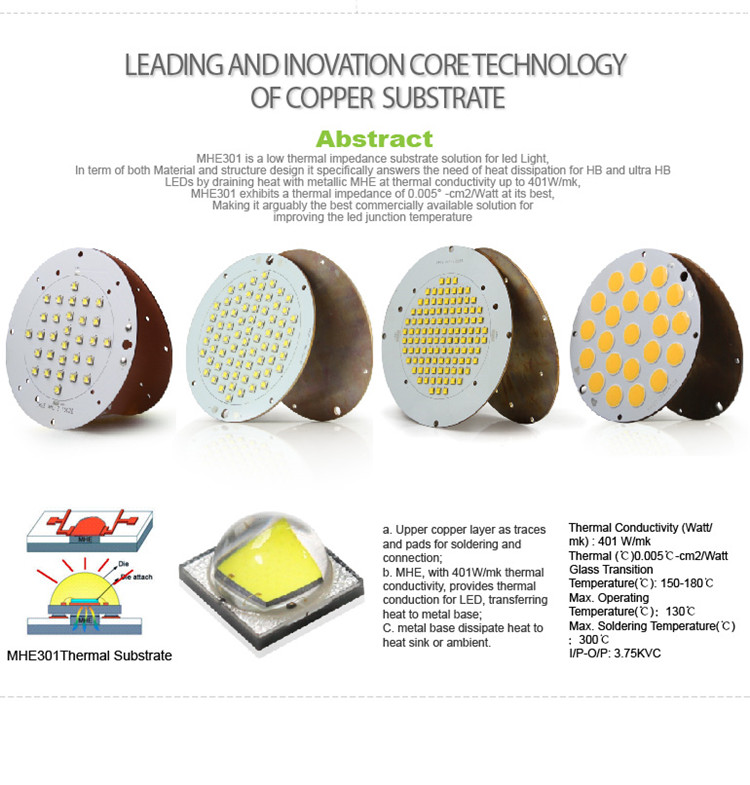

High Bay Light LEDs
High Bay Light Graphs

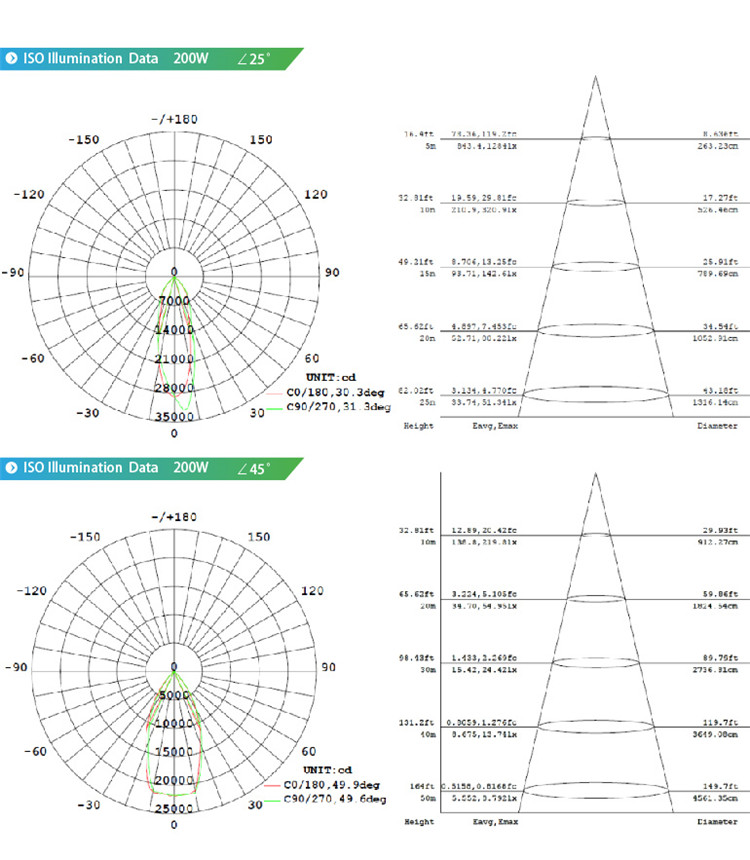

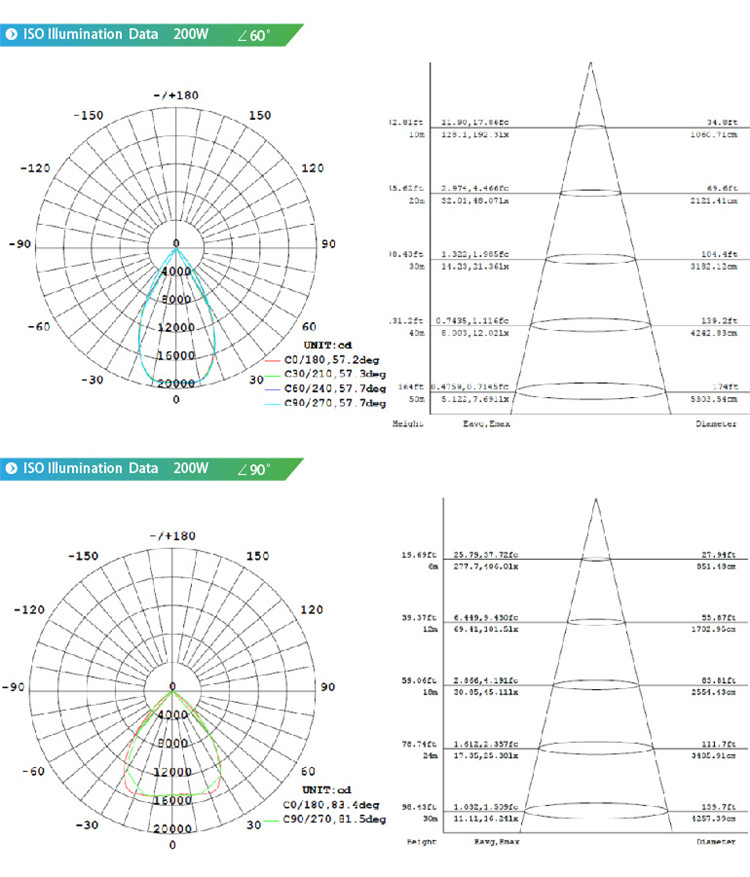

High Bay Light ISO data

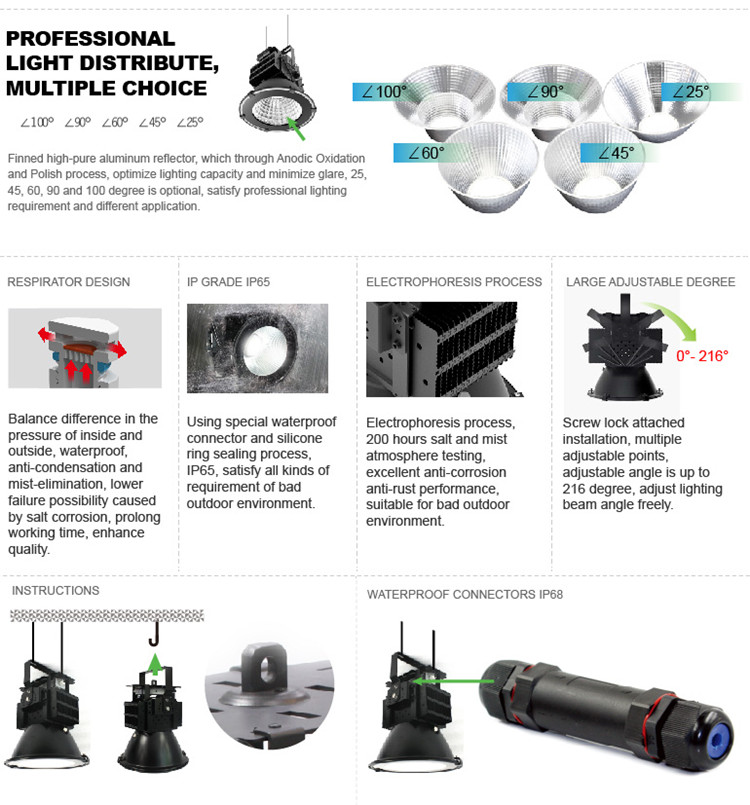

High Bay Light Structure

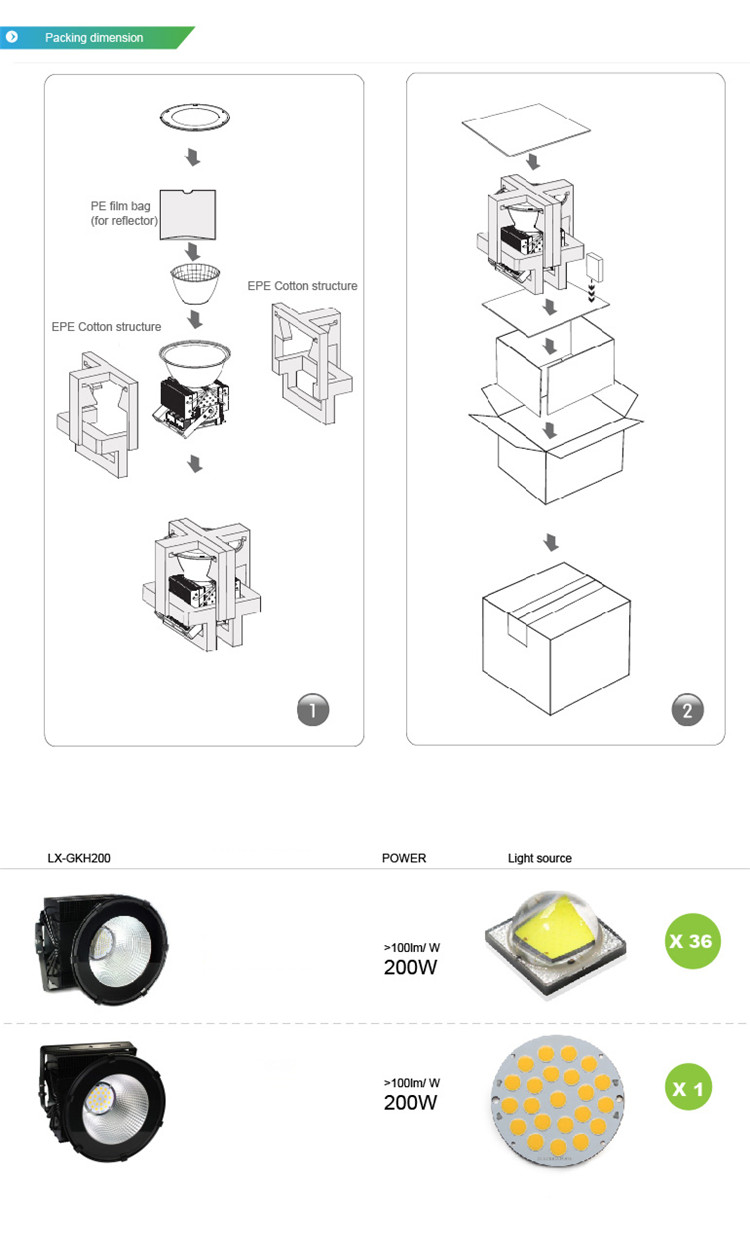

High Bay Light Packaging

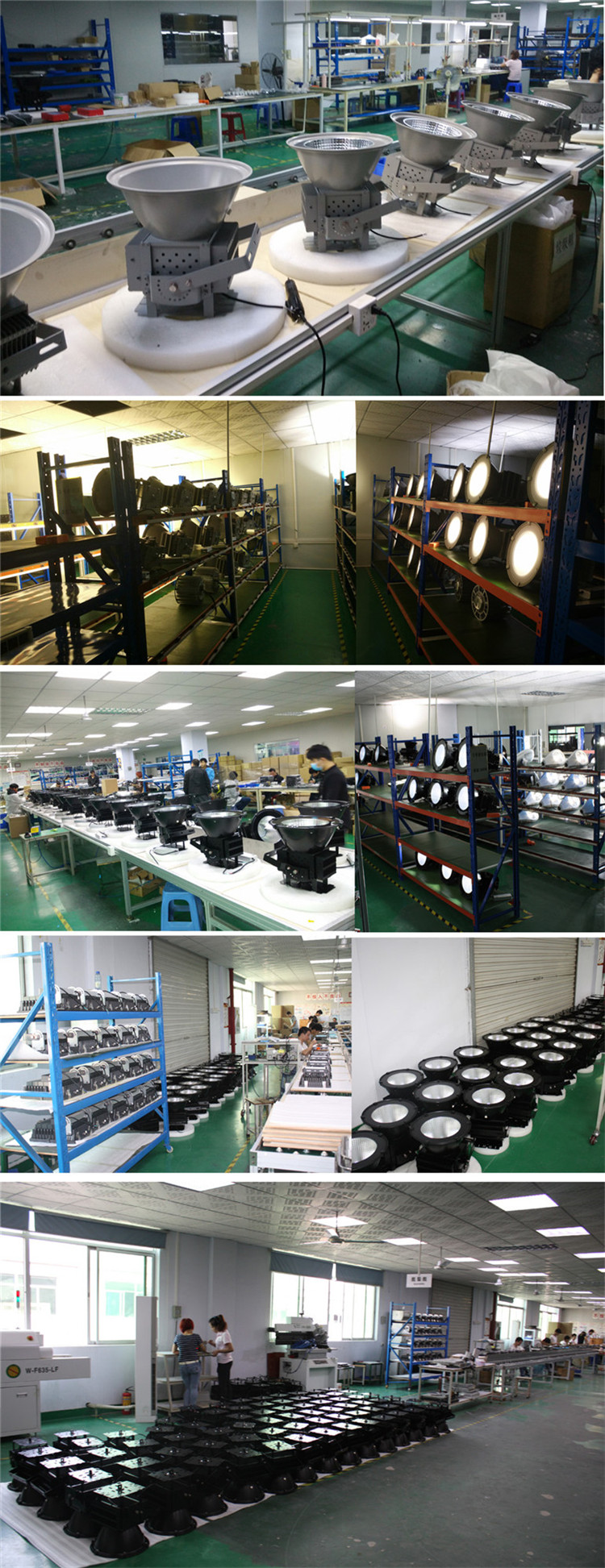

High Bay Light Assembly
High Bay Light Cases

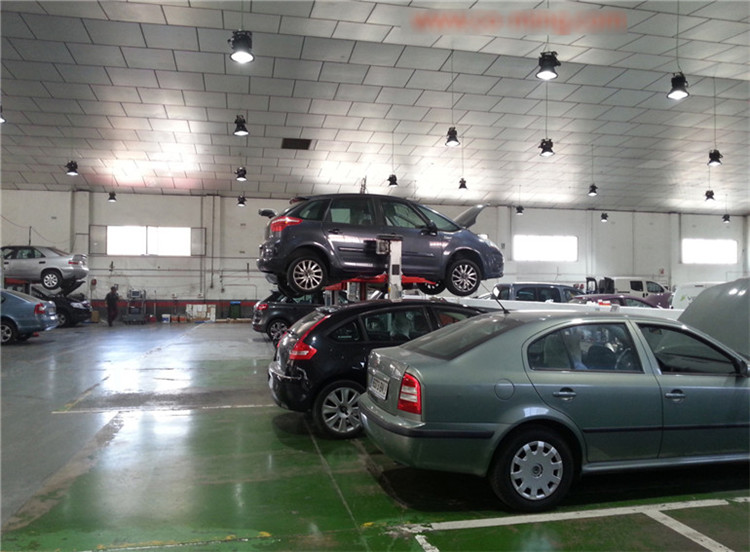

High Bay Light Case at place

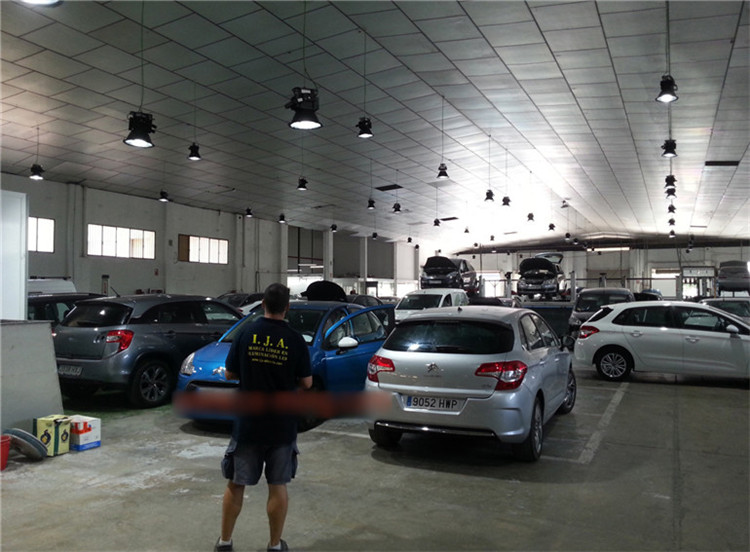

High Bay Light at ware house

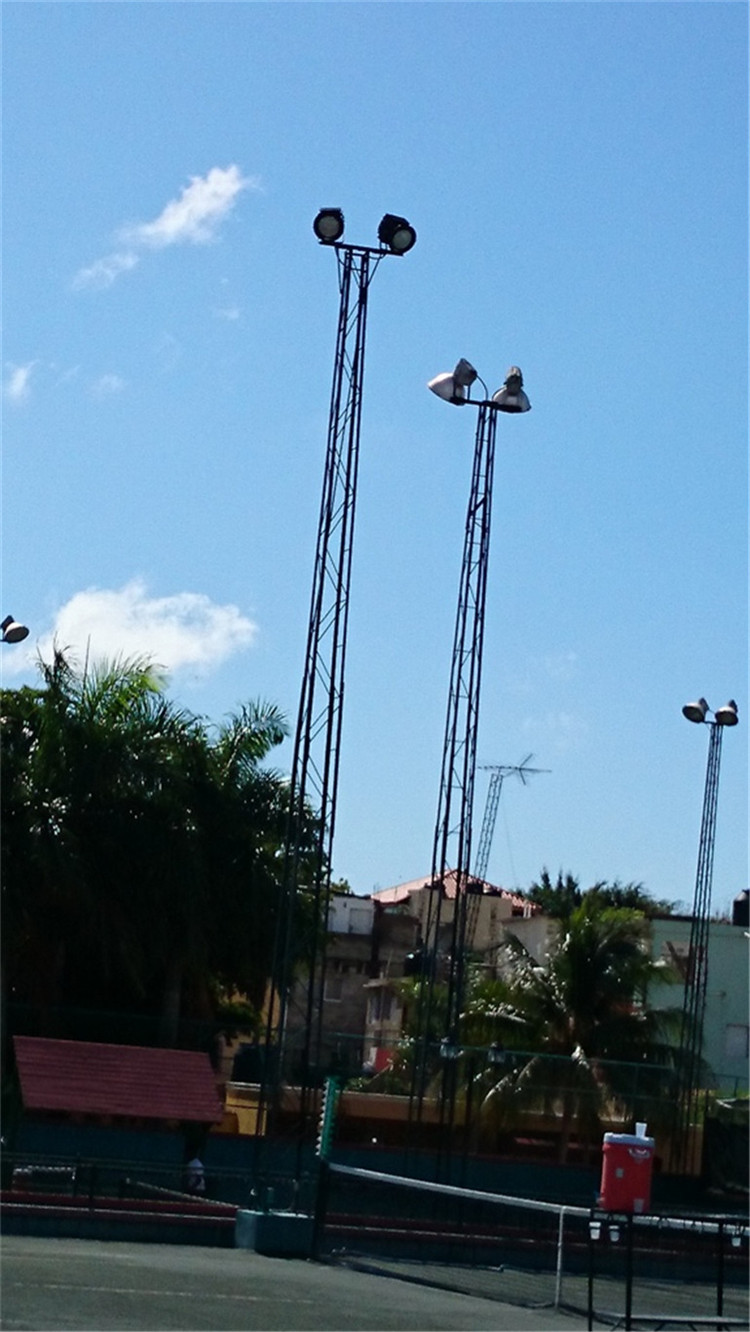

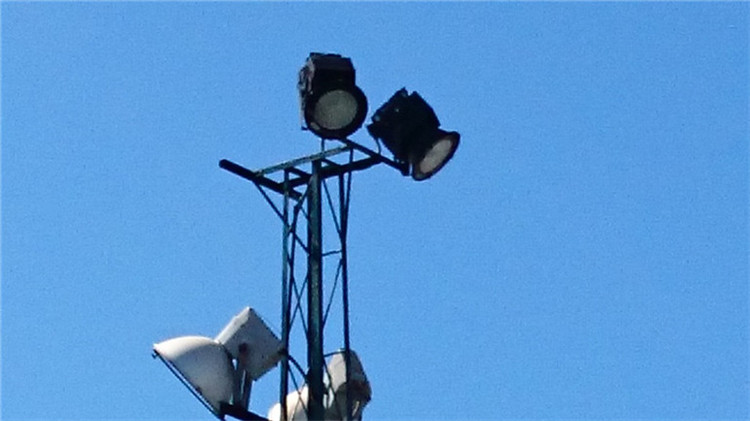

High Bay Light at parking

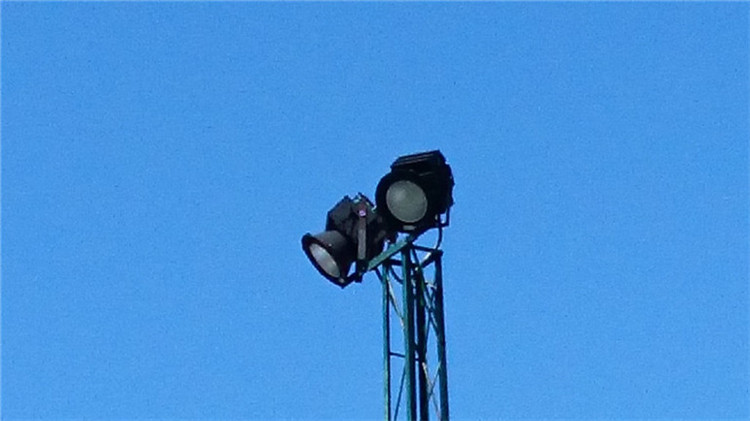

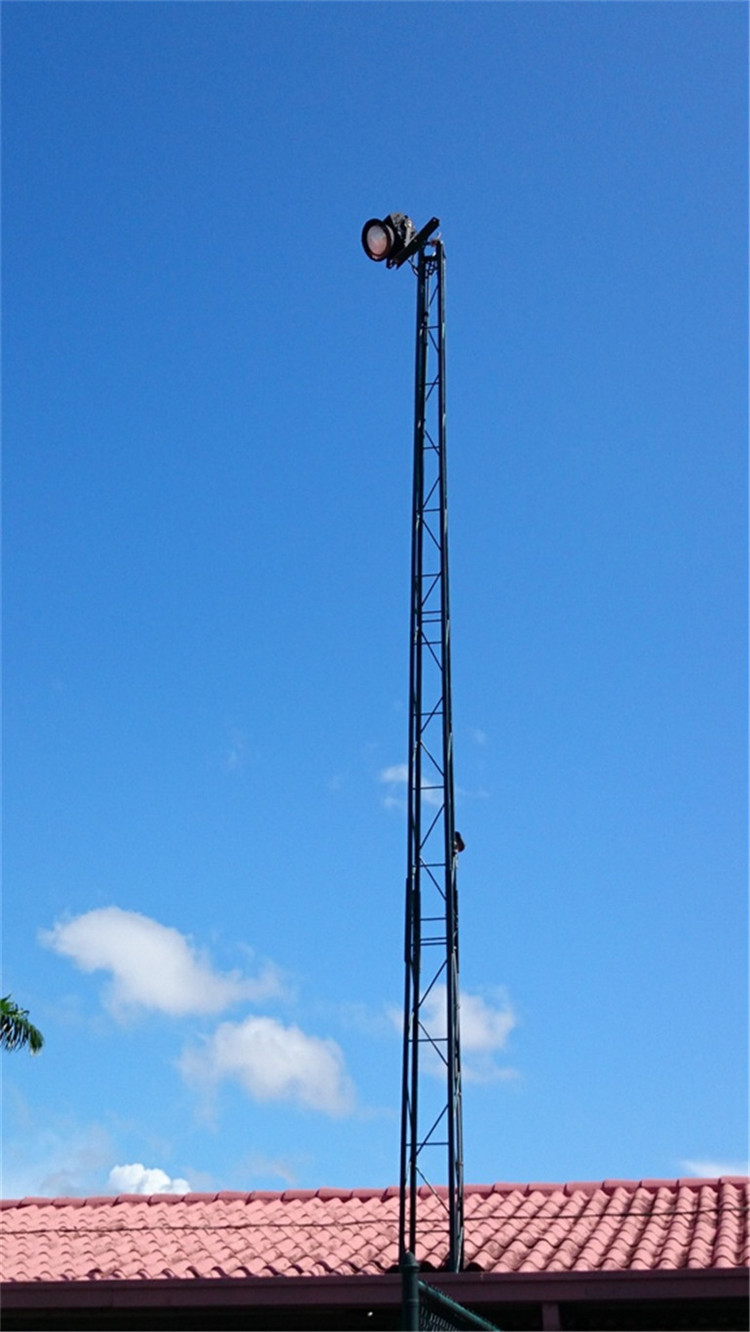

High Bay Light Ground

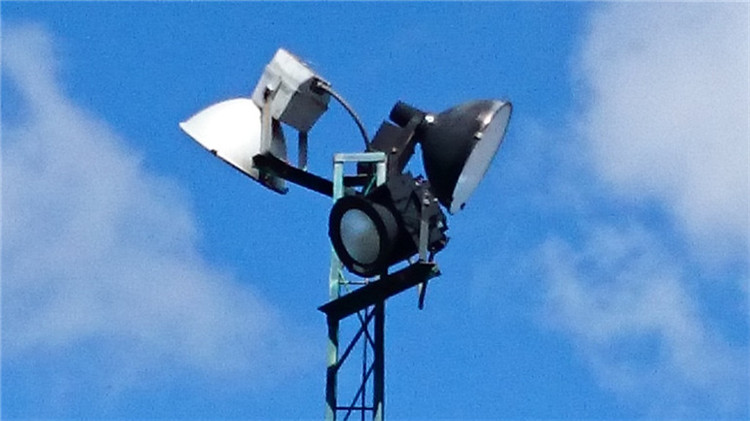

High Bay Light at Ground
High Bay Light at Ground

CONSTRUCTION & MATERIALS

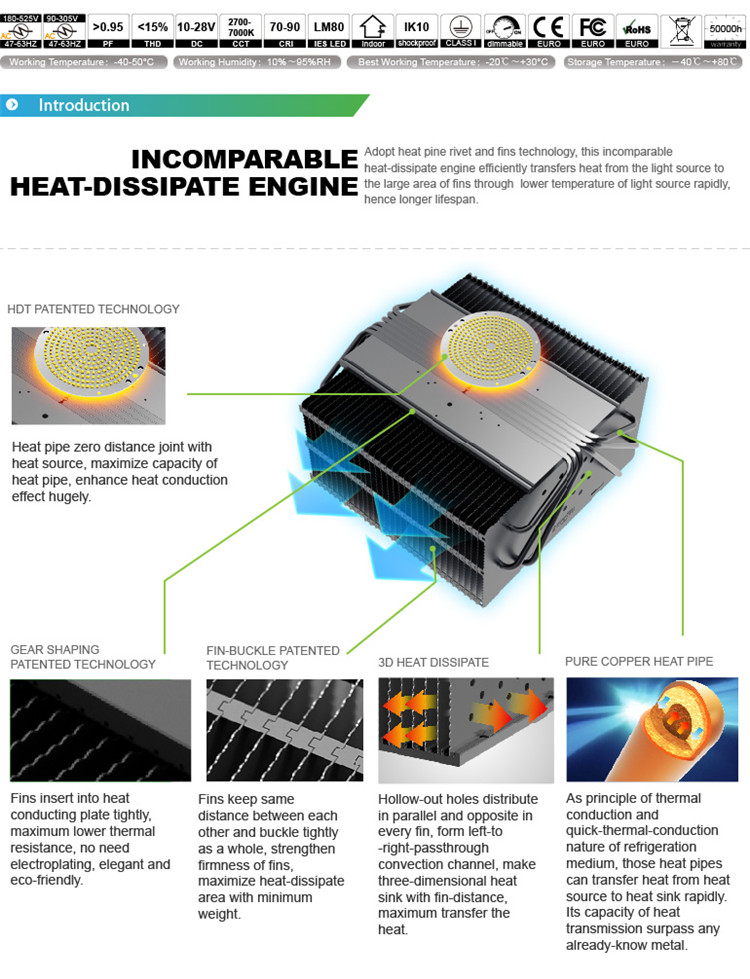

One-piece die-cast aluminum housing. One-piece silicone perimeter lens gasket and closed-cell neoprene housing gasket help to seal out moisture and contaminants. High-quality shock-proof polycarbonate lens with UV inhibitors. Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED. The driver is mounted in direct contact with the casting for a low operating temperature and long life. Polyester powder-coated finish, rust, and corrosion-proof.

MOUNTING AND WIRING:  Hook mount, Trestle mounting optional.

ENVIRONMENTAL SYSTEM: ETL listed, IP65 rated, and suitable for wet locations.

ELECTRICAL SYSTEM: Integral high-performance LED driver. Universal input voltage 100-277VAC, 50/60Hz.

OPTICAL SYSTEM: High-quality shock proof polycarbonate lens with UV inhibitors.. 60°,120°, 120° frosted optional. High-performance SMD LEDs mounted on metal core board and integral aluminum heat sink. Color temperature: 5000K. Other color temperatures are available for special order, consult the factory for lead time.

LIGHTING CONTROL:  Available for special orders, consult the factory for lead time
